Silicon wafers / substrate find applications in the fabrication of integrated circuits, solar cells etc. They serve as a substrate for various microelectronic devices.

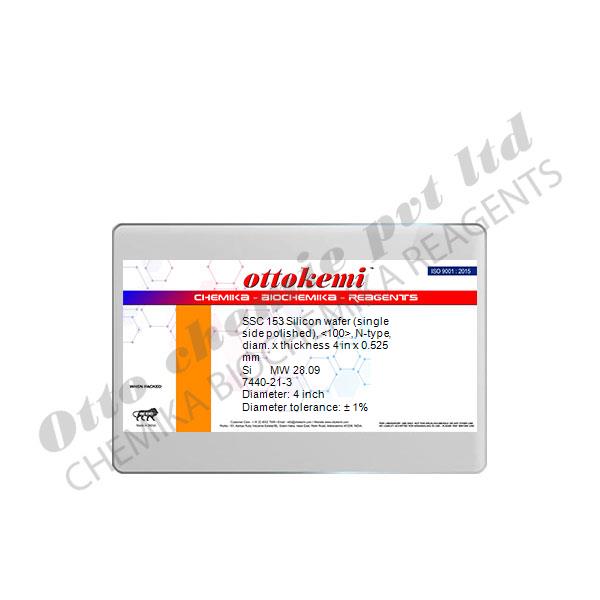

SSC 153 - Silicon wafer (single side polished), <100>, N-type, diam. x thickness 4 in x 0.525 mm - used in electronics for the fabrication of integrated circuits and in photovoltaics for conventional, wafer-based solar cells.
WGK Germany 2
Certificate Of Analysis
(For eg. B 1615-0108)
Other Documents
