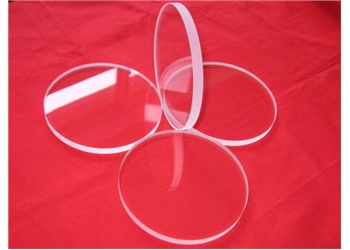

Plane optical window, 150 mm dia, 8 mm thick

: PO 360

: PO 360 (OTTO) Plane optical window, 150 mm dia, 8 mm thick - used widely for Laser optics, optical grade UV Fused Silica windows and lenses, mirror blanks and substrates, wedges, optical beamsplitters and filters, prisms, lightpipes, space and aircraft windows, solar cells, high quality coating substrates etc.

Properties

: Crystal optics,Chemically coated windows / substrates

: Fused silica

: 150 mm

: ± 1 mm

: 8 mm

: ± 0.5 mm

: 1064 nm

: Normal

: AR coating broadband (633-1064 nm) on both surfaces

: R<0.25% per surface

: 40-20 scratch and dig or better

: λ/10 @ 633 nm

: < 10 arc sec

: ≥1GW/cm2 @1064 nm

Safety Information

Safety Information for this product is unavailable at this time.

PackingsPrice (INR)
1 pc POR
10 pc POR
Custom size POR
