Specification Sheet

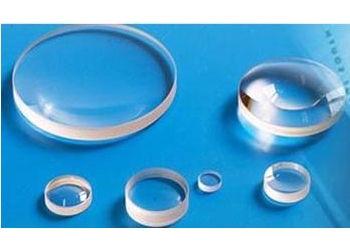

Plano Convex Spherical Lens, Dia 25.4mm, Focal Length 100mm

: PCSL105

: Plano-convex lens are used to focus a collimated beam, produces a sharper focal spot when used with the convex side towards the beam source.

: Plano-convex lenses are positive focal length elements that have one spherical surface and one flat surface. These lenses are designed for infinite conjugate (parallel light) use or simple imaging in non-critical applications. These optic lenses are ideal for all-purpose focusing elements.


Properties

: NBK7 / BK-7 / Fused Silica

: 25.4 mm (+0.0, -0.4 mm)

: 100 mm

: λ/4 at 633 nm or better over 85% of the diameter

: 3-4 mm

: 60-40 Scratch-Dig

: ≤ 3 arc minute

: ± 3% or better

: 0.25 mm x 45o or nearest standard

: Uncoated


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
100 pc POR
1000 pc POR
