Specification Sheet

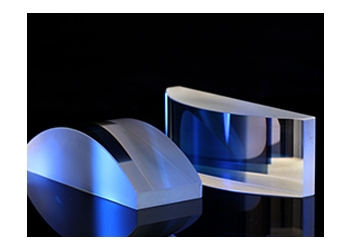

Plano Convex Cylindrical Lens, Focal Length : 25mm

: Plano-Convex Cylindrical Lens

: PCCL495

: Focal Length : 25mm

: Surface quality 40-20 or better for both surfaces

: Plano Convex Cylindrical Lens, are used to focus light to a thin line in laser scanners, spectroscopy, dye lasers, acousto-optics, optical processors and other similar applications.


Properties

: BK-7 or Fused Silica

: 25mm to 30 mm (+ - 2%)

: >= 40 x 25 ( X x Y)

: +25%

: >= 80% of dimension

: Anti-Reflection @ 532nm with RIoss <0.5% per surface

: M1L-C-675C

: 1000 Watt/ cm2 or better at 532nm (CW)

: λ per cm or better @ 632nm for both X and Y

: λ/4 or better @ 632nm


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
1000 pcs POR
