Specification Sheet

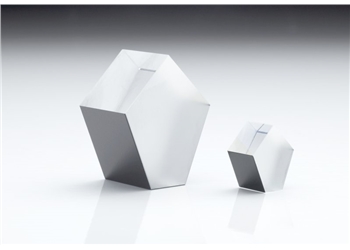

Penta Prism, Thickness 50 mm

: PP027

: Aluminized on reflecting surfaces protected with black paint overcoat.

: Pentaprism is a five-sided reflecting prism used to deviate a beam of light by a constant 90°, even if the entry beam is not at 90° to the prism.


Properties

: NBK7 / BK7

: 40-20 or better

: λ/10 at 633 nm or better over 85% of the diameter

: ±1 mm

: ±30 arc sec or better for 45°& 90°

: ±10 arc min or better for 112.5°

: 0.25 mm x 45° or nearest standard

: AR coated on entrance & exit faces for 633 nm

: 50 mm


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
