Specification Sheet

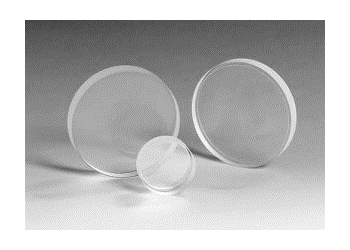

Laser Grade Window, 38.1 mm Dia

Code

: LGW009

Applications

: Information for this product is unavailable at this time.

Categories

Substrate

: BK-7 or Fused Silica

Clear Aperture

: >80%

Diameter

: 38.1 mm (±0.2 mm)

Surface Quality

: 20-10

Parallelism

: <5 arc sec

Transmitted Wavefront

: P-V λ/8

Coating

: AR coated / NIR-II coated

Wavelength Range

: 650 - 1050 nm

Coating damage threshold

: > 100 kW/cm2 CW @1080 nm

Thickness

: 2-3 mm

Safety Information for this product is unavailable at this time.

Packings	Price (INR)
1 pc	POR
10 pc	POR
