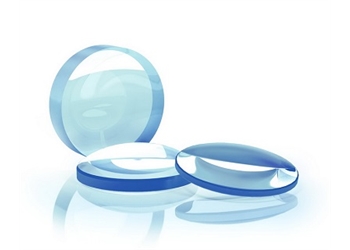

Laser Grade Plano Convex Lens, Dia 50 mm, Focal Length : 200 mm

: Plano-Convex Cylindrical Lens (Laser grade), Laser Grade PCX Lens

: LGP081

: Plano-Convex Lens

: Plano-Convex (PCX) Lenses have a positive focal length, making them ideal for collecting and focusing light. They are also useful in a variety of applications involving emitters, detectors, lasers, and fiber optics.

: Laser Grade Plano Convex Lens, Dia 50 mm, Focal Length : 200 mm - used for focusing high power fiberlaser beam.


Properties

: Fused silica / BK7

: 50 mm

: ± 2 %

: 2.0 mm - 2.5 mm

: ± 2 %

: 1080 nm

: >85% for 500-2000 nm >99% for 1080 nm

: 40 - 20 scratch & dig or better

: λ/10

: > Central 85% of diameter

: < 1 arc min

: AR coated @1080 nm on both surfaces

: <0.25% @ 1080nm

: > 100 kW/cm2 CW @1080 nm

: Safety bevel


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc 120609.00
10 pc POR
Custom size POR
