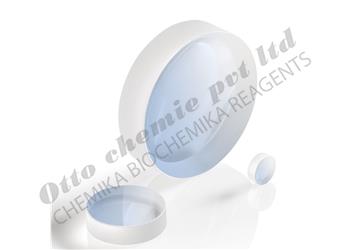

Plano Concave Spherical Lens, Dia 50.8 mm, Focal Length -300 mm

Code: PCSL013
Bottle / Drum
18%

Bottle / Drum

18%
PackingsPrice (INR)
1 pc POR
100 pc POR
1000 pc POR
Packings
Enquire
Properties
NBK7 / BK-7 / Fused Silica

50.8 mm (+0.0, -0.4 mm)

-300 mm

λ/4 at 633 nm or better over 85% of the diameter

3-4 mm

60-40 Scratch-Dig

≤ 3 arc minute

± 3% or better

0.25 mm x 45o or nearest standard

Uncoated

Description

Plano-Concave Lenses are ideal for beam expansion, light projection, or for expanding an optical system's focal length.

Application

Plano-concave lens is the most common item used for light projection and beam expansion.The plano-concave lenses are used to expand light beams or to increase focal lengths in optical systems.
